The Importance of Oxygen and Nitrogen Separation
In many industries, separating oxygen and nitrogen is essential. This is because oxygen and nitrogen have different properties that make them useful for different purposes. Oxygen, for example, is highly reactive and is used in many chemical reactions. Nitrogen, on the other hand, is relatively inert and is used to create an inert atmosphere, which is essential in many chemical processes.
The Basics of Oxygen and Nitrogen Separation

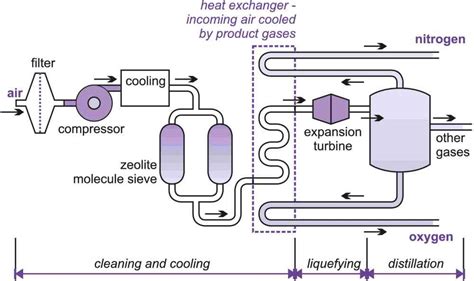

There are several methods for separating oxygen and nitrogen, but the most common is cryogenic distillation. This method involves cooling air to very low temperatures, which causes the oxygen and nitrogen to condense into a liquid. The liquid air is then passed through a distillation column, which separates the oxygen and nitrogen based on their boiling points.
Step 1: Compression
The first step in cryogenic distillation is to compress the air. This is done using a compressor, which increases the pressure of the air and reduces its volume. The compressed air is then cooled to remove any moisture and impurities.
Step 2: Cooling
The next step is to cool the air to very low temperatures. This is done using a series of heat exchangers, which transfer the heat from the air to a refrigerant. As the air cools, the oxygen and nitrogen start to condense into a liquid.
Step 3: Separation
The liquid air is then passed through a distillation column, which separates the oxygen and nitrogen based on their boiling points. This is possible because oxygen has a lower boiling point than nitrogen. As the liquid air is heated, the oxygen boils off first and is collected at the top of the column. The nitrogen, which has a higher boiling point, is collected at the bottom of the column.
Other Methods of Oxygen and Nitrogen Separation
While cryogenic distillation is the most common method for separating oxygen and nitrogen, there are other methods as well. These include pressure swing adsorption, membrane separation, and vacuum swing adsorption. Each method has its own advantages and disadvantages, and the choice of method depends on the specific application.
Pressure Swing Adsorption
Pressure swing adsorption involves passing air through a bed of adsorbent material, which adsorbs the nitrogen. The oxygen is then collected as the product gas. The adsorbent material is then regenerated by reducing the pressure, which causes the nitrogen to desorb.
Membrane Separation
Membrane separation involves passing air through a membrane, which allows the oxygen to pass through while retaining the nitrogen. The oxygen is then collected as the product gas.
Vacuum Swing Adsorption
Vacuum swing adsorption is similar to pressure swing adsorption, but it uses a vacuum instead of a high pressure to adsorb the nitrogen. The oxygen is then collected as the product gas.
Conclusion
Separating oxygen and nitrogen is essential in many industries, and there are several methods for doing so. Cryogenic distillation is the most common method, but pressure swing adsorption, membrane separation, and vacuum swing adsorption are also used. The choice of method depends on the specific application.
